Custom FJ123 Automatic Top-Side Drive Belt Carton Sealer Factories, Manufacturer

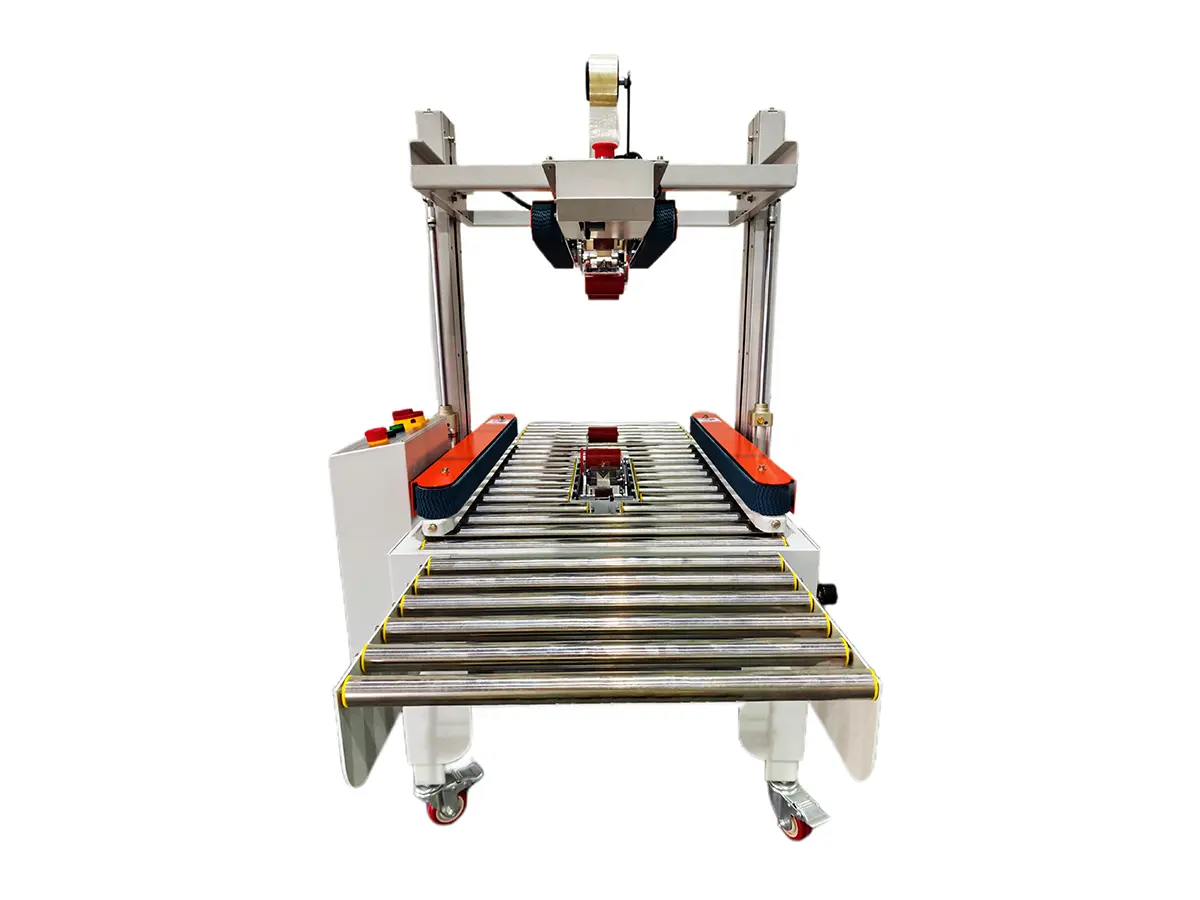

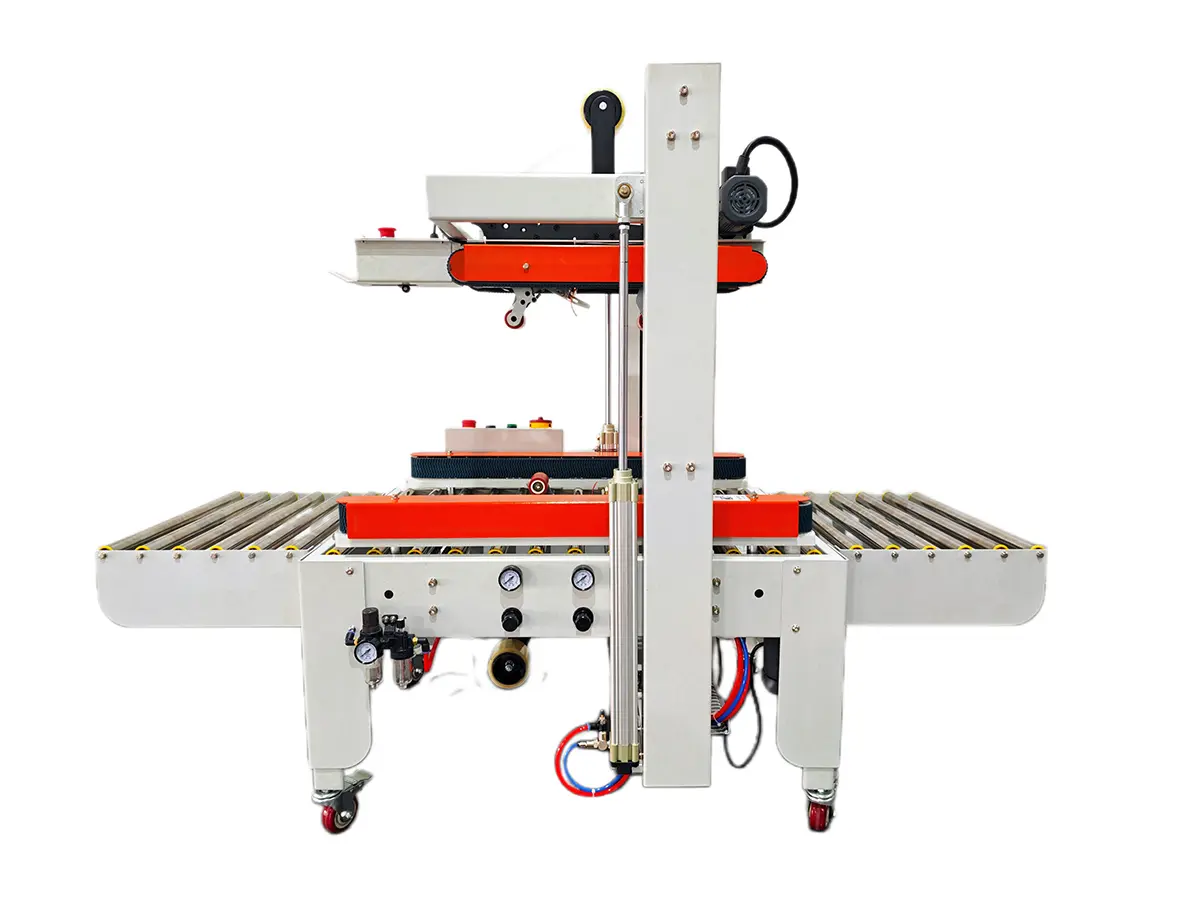

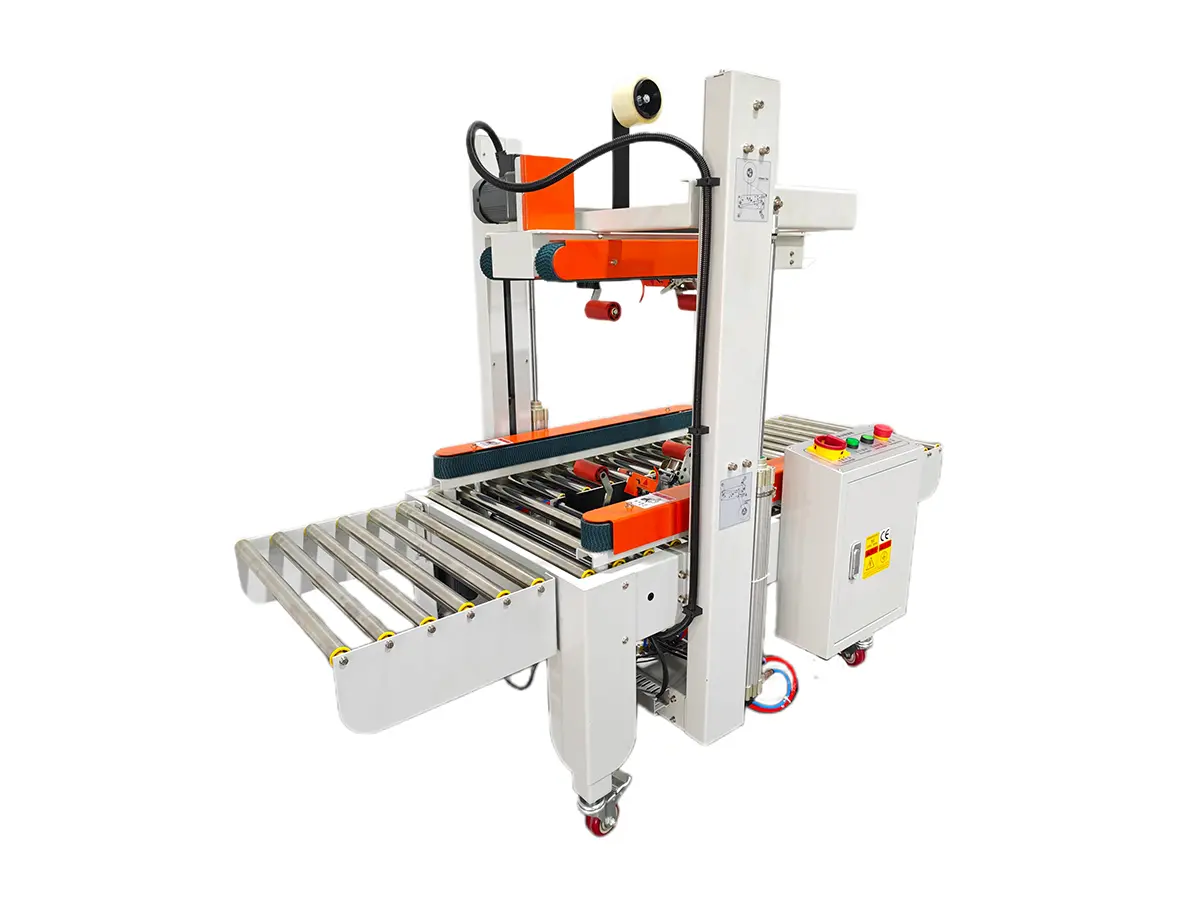

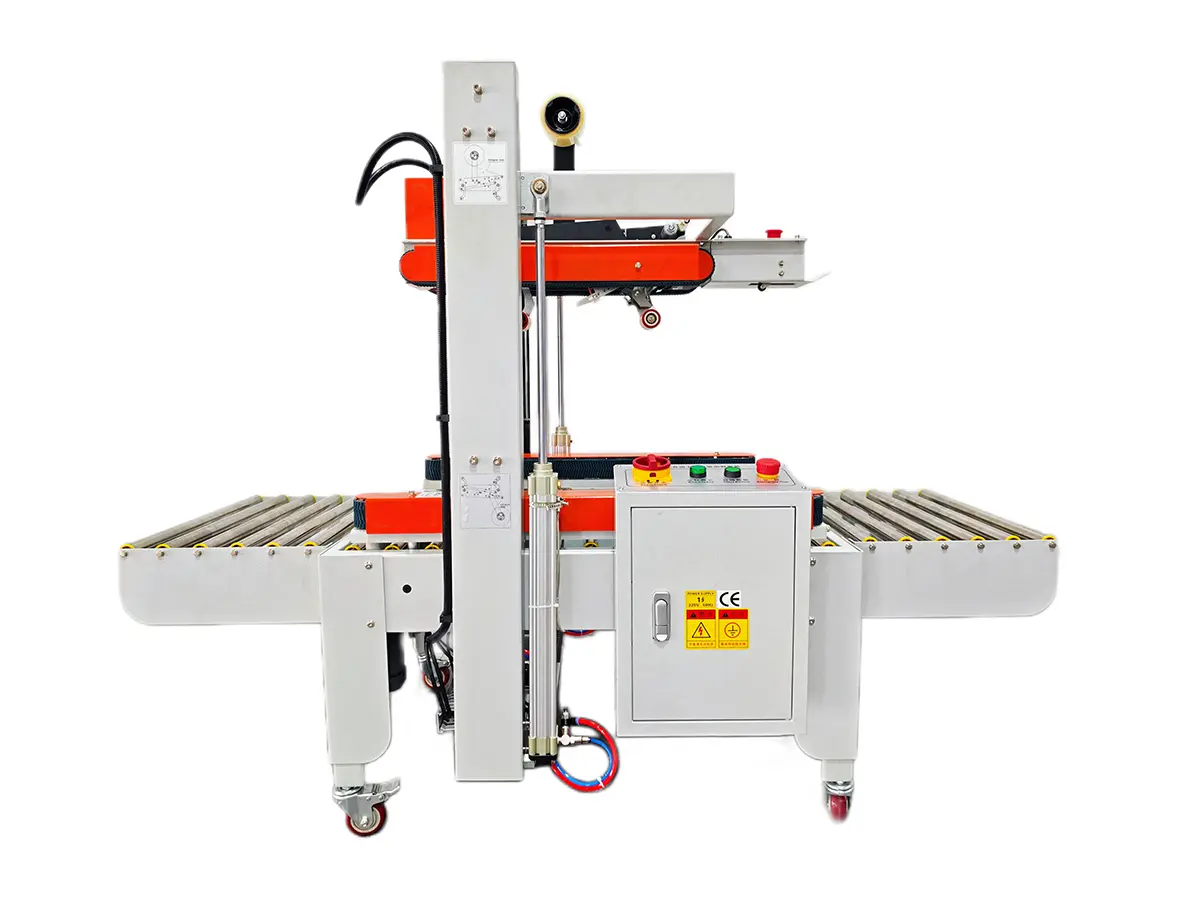

The Automatic Top-Side Drive Belt Carton Sealer uses separate top, left and right motors for three-direction carton clamping and steady conveying. It auto-adjusts dimensions to skip manual recalibration for frequent carton size switches. Equipped with a sturdy thick frame and upgraded tape dispenser, it suits diverse cartons with long service life and full after-sales service. The tidy control panel has an emergency stop button and independent power switches. Air cylinders serve as key automatic parts for the three-side carton sealer. Powered by air pressure, they auto-adjust the top and side belts to fit various carton sizes without manual tuning.

Send Inquiry

Product Description

Frequently Asked Questions

Q: What is the difference between a side drive and a top-bottom drive carton sealer?

Side drive belt carton sealers (like FJ122) are ideal for narrow, high-profile, or lightweight cartons as they grip the sides. Top-bottom drive sealers (like FJ121 and FJ111) are better suited for heavy or wide cartons, providing uniform support from both the top and bottom during the sealing process.

Q: Can these automatic carton sealing machines handle different box sizes?

Yes, most of our fully automatic and semi-automatic carton sealers can be adjusted to handle various carton sizes. Fully automatic models can automatically adapt to different box dimensions in real-time, while semi-automatic models can be manually adjusted quickly for batch processing.

Q: What types of adhesive tape can be used with these machines?

Our carton sealing machines are highly versatile and compatible with standard BOPP tapes, PVC tapes, and paper masking tapes. The tape width can typically range from 2 inches (48mm) to 3 inches (72mm) depending on the tape head configuration.

Q: Are these machines easy to integrate into an existing packaging production line?

Absolutely. Our carton sealers are designed with a modular structure and standard working heights, allowing them to easily connect with roller conveyors, strapping machines, and other automated packaging equipment for seamless inline operation.

Q: What maintenance is required for these carton sealers?

Regular maintenance is minimal but important. It involves cleaning adhesive residue off the blades and rollers, applying lubrication to the driving chains and bearings periodically, and checking the wear on the drive belts to ensure stable carton transport.
